American Racing Wheels Information

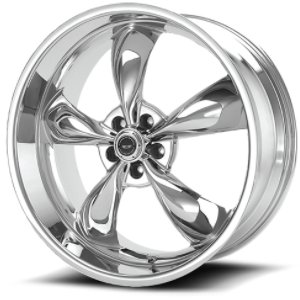

American Racing Chrome Torq Thrust M one-piece cast aluminum wheel with chrome plated finish. It is direct bolt with conical seat lug holes for use with acorn style lugs.



Part Number Description Finish Size Bolt Pattern Offset Backspace Hub Bore Load Rating Center Cap
AR605M6780C AR605  Torq Thrust M 16x7 5x100 +35mm CHROME PLATED 16x7 5x100 +35mm 5.38" 57.1mm 1400 lbs 1258100011
AR605M6752C AR605  Torq Thrust M 16x7 5x110 +35mm CHROME PLATED 16x7 5x110 +35mm 5.38" 65.1mm 1400 lbs 1258100011
AR605M6766C AR605  Torq Thrust M 16x7 5x4.5 +35mm CHROME PLATED 16x7 5x4.5 +35mm 5.38" 72.6mm 1400 lbs 1258100011
AR605M6791C AR605  Torq Thrust M 16x7 5x115 +35mm CHROME PLATED 16x7 5x115 +35mm 5.38" 70.3mm 1400 lbs 1258100011
AR605M7765C AR605  Torq Thrust M 17x7 5x4.5 0mm CHROME PLATED 17x7 5x4.5 0mm 4.00" 72.6mm 1580 lbs 1258100011
AR605M7761C AR605  Torq Thrust M 17x7 5x4.75 0mm CHROME PLATED 17x7 5x4.75 0mm 4.00" 72.6mm 1580 lbs 1258100011
AR605M77580C AR605  Torq Thrust M 17x7.5 5x100 +45mm CHROME PLATED 17x7.5 5x100 +45mm 6.02" 57.1mm 1600 lbs 1258100011
AR605M77552C AR605  Torq Thrust M 17x7.5 5x110 +45mm CHROME PLATED 17x7.5 5x110 +45mm 6.02" 65.1mm 1600 lbs 1258100011
AR605M77566C AR605  Torq Thrust M 17x7.5 5x4.5 +45mm CHROME PLATED 17x7.5 5x4.5 +45mm 6.02" 72.6mm 1600 lbs 1258100011
AR605M77591C AR605  Torq Thrust M 17x7.5 5x115 +45mm CHROME PLATED 17x7.5 5x115 +45mm 6.02" 70.3mm 1600 lbs 1258100011
AR605M7865C AR605  Torq Thrust M 17x8 5x4.5 0mm CHROME PLATED 17x8 5x4.5 0mm 4.50" 72.6mm 1840 lbs 1258100011
AR605M7866C AR605  Torq Thrust M 17x8 5x4.5 +30mm CHROME PLATED 17x8 5x4.5 +30mm 5.68" 72.6mm 1840 lbs 1258100011
AR605M7861C AR605  Torq Thrust M 17x8 5x4.75 0mm CHROME PLATED 17x8 5x4.75 0mm 4.50" 72.6mm 1840 lbs 1258100011
AR605M7873C AR605  Torq Thrust M 17x8 5x5.0 0mm CHROME PLATED 17x8 5x5.0 0mm 4.50" 78.3mm 1840 lbs 1258100011
AR605M7965C AR605  Torq Thrust M 17x9 5x4.5 +24mm CHROME PLATED 17x9 5x4.5 +24mm 5.94" 72.6mm 1840 lbs 1258100011
AR605M7966C AR605  Torq Thrust M 17x9 5x4.5 +45mm CHROME PLATED 17x9 5x4.5 +45mm 6.77" 72.6mm 1840 lbs 1258100011
AR605M7961C AR605  Torq Thrust M 17x9 5x4.75 +45mm CHROME PLATED 17x9 5x4.75 +45mm 6.77" 72.6mm 1840 lbs 1258100011
AR605M71565C AR605  Torq Thrust M 17x10.5 5x4.5 +28mm CHROME PLATED 17x10.5 5x4.5 +28mm 6.85" 72.6mm 1840 lbs 1258100011
AR605M71561C AR605  Torq Thrust M 17x10.5 5x4.75 +44mm CHROME PLATED 17x10.5 5x4.75 +44mm 7.48" 72.6mm 1840 lbs 1258100011
AR605M8865C AR605  Torq Thrust M 18x8 5x4.5 0mm CHROME PLATED 18x8 5x4.5 0mm 4.50" 72.6mm 1580 lbs 1258100011
AR605M8861C AR605  Torq Thrust M 18x8 5x4.75 0mm CHROME PLATED 18x8 5x4.75 0mm 4.50" 72.6mm 1580 lbs 1258100011
AR605M8873C AR605  Torq Thrust M 18x8 5x5.0 0mm CHROME PLATED 18x8 5x5.0 0mm 4.50" 78.3mm 1580 lbs 1258100011
AR605M8965C AR605  Torq Thrust M 18x9 5x4.5 +24mm CHROME PLATED 18x9 5x4.5 +24mm 5.94" 72.6mm 1840 lbs 1258100011
AR605M8966C AR605  Torq Thrust M 18x9 5x4.5 +34mm CHROME PLATED 18x9 5x4.5 +34mm 6.34" 72.6mm 1840 lbs 1258100011
AR605M8912C AR605  Torq Thrust M 18x9 5x120 +34mm CHROME PLATED 18x9 5x120 +34mm 6.34" 74.1mm 1840 lbs 1258100011
AR605M8165C AR605  Torq Thrust M 18x10 5x4.5 +24mm CHROME PLATED 18x10 5x4.5 +24mm 6.44" 72.6mm 1840 lbs 1258100011
AR605M8166C AR605  Torq Thrust M 18x10 5x4.5 +45mm CHROME PLATED 18x10 5x4.5 +45mm 7.27" 72.6mm 1840 lbs 1258100011
AR605M28565SSC AR605  Torq Thrust M 20x8.5 5x4.5 +18mm CHROME PLATED 20x8.5 5x4.5 +18mm 5.46" 72.6mm 1600 lbs 1258100011
AR605M28566SSC AR605  Torq Thrust M 20x8.5 5x4.5 +32mm CHROME PLATED 20x8.5 5x4.5 +32mm 6.01" 72.6mm 1600 lbs 1258100011
AR605M28592SSC AR605  Torq Thrust M 20x8.5 5x115 +18mm CHROME PLATED 20x8.5 5x115 +18mm 5.46" 72.6mm 1600 lbs 1258100011
AR605M28512SSC AR605  Torq Thrust M 20x8.5 5x120 +32mm CHROME PLATED 20x8.5 5x120 +32mm 6.01" 74.1mm 1600 lbs 1258100011
AR605M29066SSC AR605  Torq Thrust M 20x9 5x4.5 +30mm CHROME PLATED 20x9 5x4.5 +30mm 6.18" 72.6mm 1600 lbs 1258100011
AR605M29067SSC AR605  Torq Thrust M 20x9 5x4.5 +45mm CHROME PLATED 20x9 5x4.5 +45mm 6.77" 72.6mm 1600 lbs 1258100011
AR605M29012SSC AR605  Torq Thrust M 20x9 5x120 +30mm CHROME PLATED 20x9 5x120 +30mm 6.18" 72.6mm 1600 lbs 1258100011
AR605M2166SSC AR605  Torq Thrust M 20x10 5x4.5 +34mm CHROME PLATED 20x10 5x4.5 +34mm 6.84" 72.6mm 1600 lbs 1258100011
AR605M2167SSC AR605  Torq Thrust M 20x10 5x4.5 +45mm CHROME PLATED 20x10 5x4.5 +45mm 7.27" 72.6mm 1600 lbs 1258100011
AR605M2192SSC AR605  Torq Thrust M 20x10 5x115 +18mm CHROME PLATED 20x10 5x115 +18mm 6.21" 72.6mm 1600 lbs 1258100011
AR605M2112SSC AR605  Torq Thrust M 20x10 5x120 +34mm CHROME PLATED 20x10 5x120 +34mm 6.84" 74.1mm 1600 lbs 1258100011
AR605M22992C AR605  Torq Thrust M 22x9.5 5x115 +18mm CHROME PLATED 22x9.5 5x115 +18mm 5.96" 72.6mm 1840 lbs 1258100011
