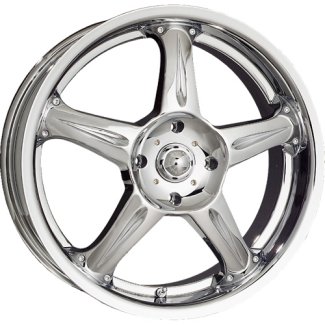

American Racing Chrome Coil custom wheels.  This wheel is a one-piece chrome plated aluminum wheel. It is direct bolt with conical seat lug holes for use with acorn style lugs.
Part# Size Bolt Pattern Offset Backspace Center Cap#
6885748 15x7 4/4.5 +40mm 5 1/2" 1242100041
6885749 15x7 4/100 +40mm 5 1/2" 1242100041
6885767 15x7 5/4.5 +40mm 5 1/2" 1242100041
6885780 15x7 5/100 +40mm 5 1/2" 1242100041
6885791 15x7 5/115 GM FWD +40mm 5 1/2" 1242100041
6886749 16x7 4/100 +42mm 5 5/8" 1242100041
6886767 16x7 5/4.5 +42mm 5 5/8" 1242100041
6886780 16x7 5/100 +42mm 5 5/8" 1242100041
6886791 16x7 5/115 GM FWD +42mm 5 5/8" 1242100041
6887731 17x7 5/4.25 +42mm 5 5/8" 1242100041
6887749 17x7 4/100 +42mm 5 5/8" 1242100041
6887752 17x7 5/110 +42mm 5 5/8" 1242100041
6887767 17x7 5/4.5 +42mm 5 5/8" 1242100041
6887780 17x7 5/100 +42mm 5 5/8" 1242100041
6887791 17x7 5/115 GM FWD +42mm 5 5/8" 1242100041
68887531 18x7.5 5/4.25 +45mm 6" 1242100041
68887552 18x7.5 5/110 +45mm 6" 1242100041
68887567 18x7.5 5/4.5 +45mm 6" 1242100041
68887591 18x7.5 5/115 GM FWD +45mm 6" 1242100041
